Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar

Place of Origin Zhejiang, China
Brand Name Lasylaser
Certification MDRCE
Model Number Yinhe-808 Bar
Price $1,000.00/pieces 1-2 pieces
Packaging Details Aliminium case diode laser spare parts 808 diode laser bar handle
Product Details
Q-Switch NO Laser Type Laser Stack Lightsheer Diode Laser Bar
Style PORTABLE Type Laser
Feature Hair Removal, Skin Rejuvenation Application For Commercial
After-sales Service Provided Free Spare Parts, Online Support, Video Technical Support Warranty 1 Year
Wavelength 808nm 755nm 1064nm Laser Bar Germany Laser Bar
Keyword Laser Hair Remvoal Bar Stack Cooling System Air + Water + Semiconductor Module
OEM Customers' Requirements MOQ 3
Language Multi Languages Customized
High Light

Commercial 808 diode laser handpiece

,

lightsheer 808 diode laser handpiece

,

portable diode laser bar

Leave a Message
Product Description

OEM factory sell handpiece for 808 diode laser hair removal machine/808 diode laser bar handle/808 handpiece available

Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar 0



Quick Details

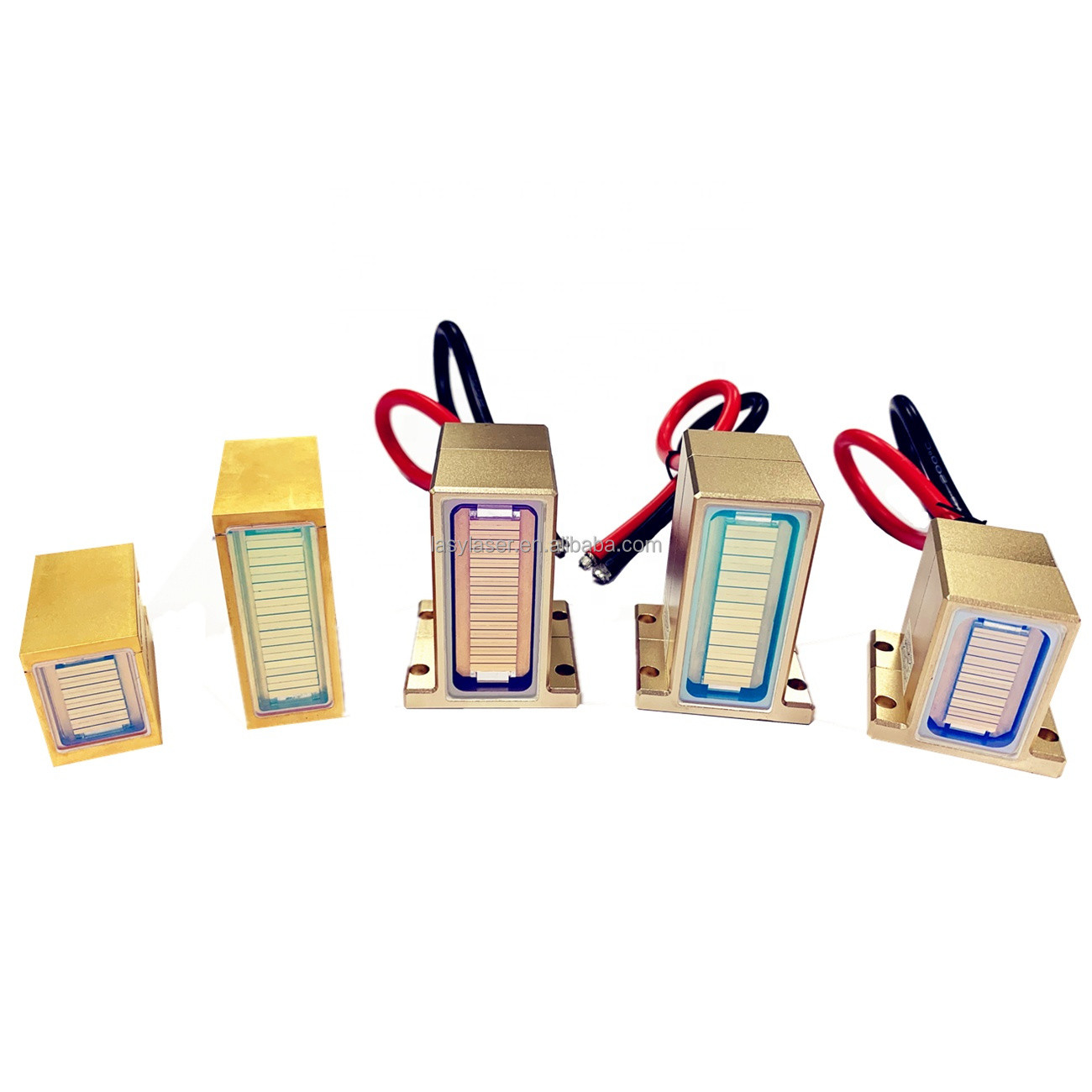

>Diode laser bar from Germany

>lifetime: over 10000hours

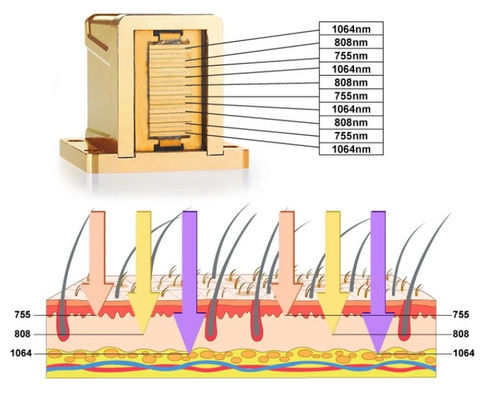

>Typical wavelengths are 755nm, 808nm, 1060nm (others upon request)

>Special design for diode laser hair removal machine

Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar 1


Details
Details
Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar 2
Optical
Wavelength
755nm/808nm/1064nm
Working Mode
QCW
Output Power Per Bar
100W
Number of Bars
6
Bar to Bar Spacing
3.4mm
Fast Axis Divergence(FWHM)
~38Deg
Slow Axis Divergence (FWHM)
~12Deg
Pulse Width
10-400ms
Duty Cycle
1-40%
Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar 3
Electrical
Operating Current Iop
80-120A
Threshold Current Ith
15-20A
Operating Voltage Vop
10.5-10.8V
Power Conversion Efficiency
48%
Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar 4
Thermal
Operating Temperature
(No Condensation)
15~30℃
(No Condensation)
Storage Temperature
(No Condensation)
0-55℃
(No Condensation)


Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar 5

Others:

Power from 100W to 10000W is on your choice, pls contact us for more details.

Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar 6Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar 7



Other Laser parts we sell that:

Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar 8

Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar 9

Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar 10

Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar 11

Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar 12

Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar 13

Commercial Lightsheer 808 Diode Laser Handpiece Portable Diode Laser Bar 14
