Excellent Optical Design Diode Laser Stack 808nm Ring Shape Module OEM Service

Excellent Optical Design Diode Laser Stack 808nm Ring Shape Module OEM Service

Excellent Optical Design Diode Laser Stack 808nm Ring Shape Module OEM Service supplier Excellent Optical Design Diode Laser Stack 808nm Ring Shape Module OEM Service supplier Excellent Optical Design Diode Laser Stack 808nm Ring Shape Module OEM Service supplier Excellent Optical Design Diode Laser Stack 808nm Ring Shape Module OEM Service supplier

Large Image :  Excellent Optical Design Diode Laser Stack 808nm Ring Shape Module OEM Service

Product Details:

Place of Origin: China
Brand Name: Oriental-laser
Certification: CE ISO9001
Model Number: VS-MA-X-XX-HR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1800-5000 / pc
Packaging Details: Plastic box
Delivery Time: 1-3 working days after payment or according to quantity
Payment Terms: EXW or FOB, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/month
Detailed Product Description
Power: 400w,500w,600w And OEM Size: OEM For Your Own Handle
Diode: 808nm Germany Bar Cooling: Heat Sink
Wavelength: 808nm Solder: Hard Solder

Excellent optical design diode laser stack 808nm ring shape module OEM service

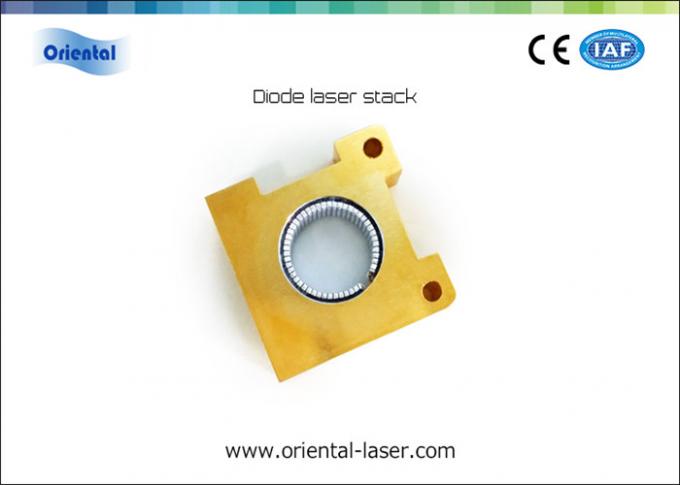

Diode Laser Satck Product Outline



Conductively Cooled Package vertical laser diode stacks are mainly designed for low duty solid-state pumping. Oriental-laser is working hard to improve the optical power density for these stacks to get max output power within a limited optical window. This kind of laser stack is widely used for Nd:YAG pumping to get high pulse energy in QCW or Pulsed mode. It is also widely used for hair removal applications.



Diode Laser Satck Features
Excellent Optical Design Diode Laser Stack 808nm Ring Shape Module OEM Service QCW laser diode bars with peak power 360W, 600W, 720W, 1500W.
Excellent Optical Design Diode Laser Stack 808nm Ring Shape Module OEM Service 6~12 bars per stack.
Excellent Optical Design Diode Laser Stack 808nm Ring Shape Module OEM Service Typical 808nm/940nm, other wavelength available.
Excellent Optical Design Diode Laser Stack 808nm Ring Shape Module OEM Service Long life time > 10000 hours
Excellent Optical Design Diode Laser Stack 808nm Ring Shape Module OEM Service Support customized package design



Excellent Optical Design Diode Laser Stack 808nm Ring Shape Module OEM Service

Diode Laser Satck Specification



Model No. PCQCW/CW-100~300-N
Peak power 100W-10000W
Wavelength 808nm, 915nm, 976nm or upon request
Output power per bar 100W-300W
Number of bars 1~40bars
Bar pitch 0.4mm~6mm
working mode CW/QCW
Package structure Curved, horizontal, vertical,G-stack

Note:

>wavelength tolerance is +-3nm.

>heatsink can be customized.



Diode Laser Satck Application



>Pumping

>Material Processing

>Scientific research

Excellent Optical Design Diode Laser Stack 808nm Ring Shape Module OEM Service
