Professional Vertical Laser Diode Stack Diode Laser 808nm Water Cooled CE ISO9001

Professional Vertical Laser Diode Stack Diode Laser 808nm Water Cooled CE ISO9001

Large Image :  Professional Vertical Laser Diode Stack Diode Laser 808nm Water Cooled CE ISO9001

Product Details:

Place of Origin: China
Brand Name: Oriental-laser
Certification: CE ISO9001
Model Number: VS-MA-X-XX-HR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1800-5000 / pc
Packaging Details: Plastic box
Delivery Time: 1-3 working days after payment or according to quantity
Payment Terms: EXW or FOB, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/month
Detailed Product Description
Power: 400w,500w,600w And OEM Size: OEM For Your Own Handle
Diode: 808nm Germany Bar Cooling: Heat Sink
Wavelength: 808nm Solder: Hard Solder

Professional diode laser 808nm water cooled vertical laser diode stack





MCC Diode Laser Stack Quick Details

>Diode laser bar from Germany
>lifetime: over 10000hours
>Customized mechanical part size
>Special design for diode laser hair removal machine



Micro channel cooler (MCC) diode laser stack is widely used in hair removal application. Oriental laser provide high reliability MCC diode laser vertically stack from 100W-2500W bars. Optical output power is from 60W cw up to 100W cw per bar. Typical wavelengths are 755nm, 808nm, 1060nm (others upon request). Besides regular stack, Oriental-Laser can also customize various stack upon our client's requirements.



MCC Diode Laser Stack Dimensions



Professional Vertical Laser Diode Stack Diode Laser 808nm Water Cooled CE ISO9001



MCC Diode Laser Stack Specification

Professional Vertical Laser Diode Stack Diode Laser 808nm Water Cooled CE ISO9001



Model: VSQCW-MI-3-100-808-HR; VSQCW-MI-4-100-808-HR; VSQCW-MI-5-100-808-HR; VSQCW-MI-6-100-808-HR; VSQCW-MI-8-100-808-HR; VSQCW-MI-10-100-808-HR; VSQCW-MI-12-100-808-HR
Operation Mode CW/QCW /
Maximum optical output power 300 400 500 600 800 1000 1200 W
Number of submounts 3 4 5 6 8 10 12 W
Power per submounts 100 W
Central wavelength at 25 808+-10
Typical Operation current 90 A
Maximum Operating current 100 A
Typical Threshold current 15 A
Maximum Operating Voltage 6 8 10 12 16 20 24 V
Fast Axis Divergence (FWHM) <39 º
Slow Axis Divergence (FWHM) <8 º
Operation Condition non-condemsing atmosphere, cleaning room             /
Expected lifetime >10000 Hours
Typical pitch per bar 1.8 mm

Cooling:
Flow rate 0.3L/min +-10%             per bar
Water Temperature 15-25             °C
Water Quality Deionized 2-10 µs/cm, mixed bed ion exchanger,particle filter<25µm
cooling system Do not use any material that combination with copper would form galvanic elements
X: The number of bars in one stack.
XX: The laser power output per bar.

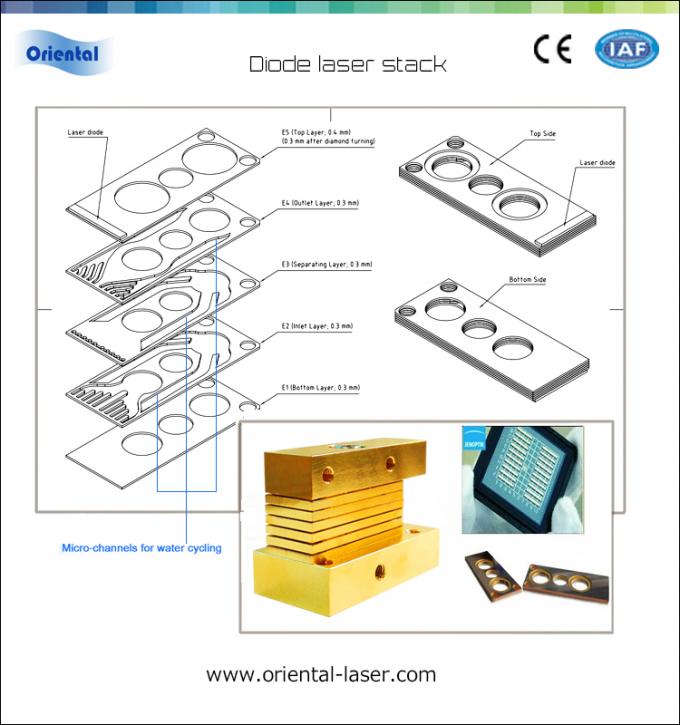

MCC Diode Laser Stack Working Principle

There is micro water channel in a thin cooper heat sink whose thickness is only 1.5mm. Diode laser chips can be cooled by water immediately. Micro channel water cooled technology highly increase the optical output power and power density of laser diode stack.



Professional Vertical Laser Diode Stack Diode Laser 808nm Water Cooled CE ISO9001



MCC Diode Laser Stack Advantage



1.Oriental-laser focus on diode laser mounting 16years;

2.We use diode laser bar and micro channel cooler from Germany;

3.Unique gold coating technology with high reliability and stability;

4.Customized optional output power and wavelength;

5.Customized mechanical part size and diode stack dimensions;

6.Refurbishment and repair service for any other diode laser brand.
