New-tech hair remove 808nm palladium stack cold laser diode stack

New-tech hair remove 808nm palladium stack cold laser diode stack

New-tech hair remove 808nm palladium stack cold laser diode stack supplier New-tech hair remove 808nm palladium stack cold laser diode stack supplier New-tech hair remove 808nm palladium stack cold laser diode stack supplier New-tech hair remove 808nm palladium stack cold laser diode stack supplier

Large Image :  New-tech hair remove 808nm palladium stack cold laser diode stack

Product Details:

Place of Origin: China
Brand Name: Oriental-laser
Certification: CE ISO9001
Model Number: VS-MA-X-XX-HR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1800-5000 / pc
Packaging Details: Plastic box
Delivery Time: 1-3 working days after payment or according to quantity
Payment Terms: EXW or FOB, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/month
Detailed Product Description
Power: 400w,500w,600w And OEM Size: OEM For Your Own Handle
Diode: 808nm Germany Bar Cooling: Heat Sink
Wavelength: 808nm Solder: Hard Solder

New-tech hair remove 808nm palladium stack cold laser diode stack

New-tech hair remove 808nm palladium stack cold laser diode stack



MA Diode Laser Stack Quick Details



>Diode laser bar from Germany
>Laser power from 300W-1200W
>Over 10000hours life time
>No water quality required
>Hard soldering and soft soldering optional
>Customized installation size

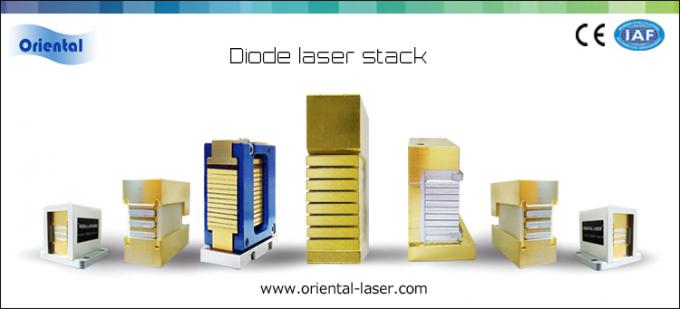

MA Diode Laser Stack Product Outline



Macro channel laser diode stacks are good for both quality and price. The structure of packaging is flexible and it has no special need for water. Oriental-laser have studied the laser diode stacks for 5 years. We deliberate on diode laser packaging and the design of laser stack. Finally we find the method to overcome macro channel laser diode stacks’ chip burning and we developed the high reliability laser diode stacks for hair removal.





MA Diode Laser Stack Applications



Diode laser stack for hair removal handle
OEM diode stack for different company demand.





MA Diode Laser Stack Specifications



Output Power 300W 500W 1000W
Wavelength 808nm(800-810nm)
Number of bars 1-20Pcs
Solder type Hard solder or soft solder
Typical Pulse Width 10ms~200ms
Repetition Rate 0~10Hz
Max Duty Circle 20%
Operation Current 40A 40A 40A
Operation Voltage <12V <20V <40V
Cooling Requirement

1. Flow Rate: >4.5L/min

2. Water quality: Industrial grade, anti-freeze possible, particle filter<100µm

3. Chiller water Temperature: 15°C-25°C.



MA Diode Laser Stack Competitive advantages



Germany Imported micro channel pieces

Bar quantity can be customized

Best assembling technology for diode laser 808nm

Effective for hair removal machine

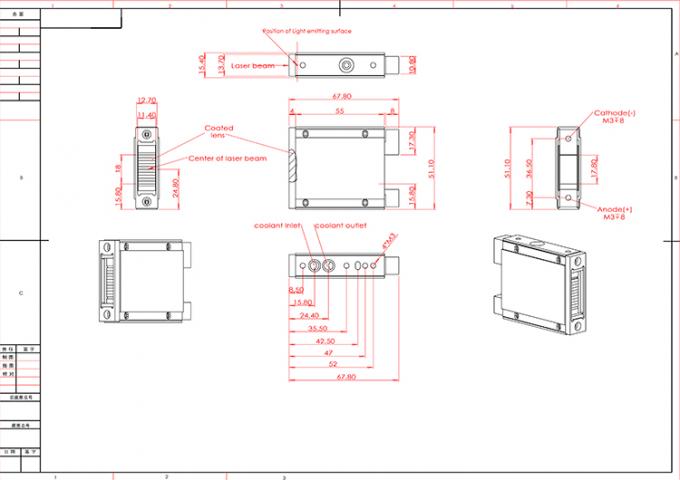

MA Diode Laser Stack Dimensions



New-tech hair remove 808nm palladium stack cold laser diode stack



For more details,please contact me
